Description
THE WORLD CAT 255DC IS THE ROOMIEST MID-SIZE DUAL CONSOLE. BUT MORE ROOM IS ONLY THE BEGINNING.
When we designed the 255DC dual console, we enhanced it with 25% more cockpit space than our previous model. It’s the roomiest mid-sized dual console you’ll find – with seating for 10. But, that’s not all: Whether fishing, cruising, diving, or entertaining, the 255DC features the kind of stable, smooth performance, shallow draft, and bow to stern quality you expect from a World Cat.
- LARGE HELM WITH SPACE FOR A BIG 12” SCREEN
- GENEROUS HEAD AREA BRINGS GREATER COMFORT
- OUR VECTORFLO® HULL DELIVERS A SMOOTHER, DRIER RIDE
WORLD CAT 255DC STANDARD FEATURES
Bow
- Pro Series free-fall windlass with 300′ line, 15′ chain, 14lb anchor, and foot switches at the deck
- 316-grade stainless steel bow rail
- Bow pulpit with roller and cleat
- Port and starboard bow anchor lockers
- Forward sun lounge featuring port and starboard cushioned seats for 6 adults with wraparound coaming pad seat backs
- Stainless steel cup holders
- Large, lockable dry storage and rod storage box (starboard)
- Large, lockable dry storage box (port)
- Large, lockable dry storage box (center)
- Large lockable dry storage compartment in front of helm console
- Seating capacity of 10 people
Head
- Enclosed lockable changing area and a freshwater electric pump-out head, 10-gallon holding tank and overboard discharge (portside console)
Helm
- Fiberglass top with aluminum frame, overhead lights, rocket launchers, and spreader lights
- 3 piece safety glass walk-through windshield with companion way handrails

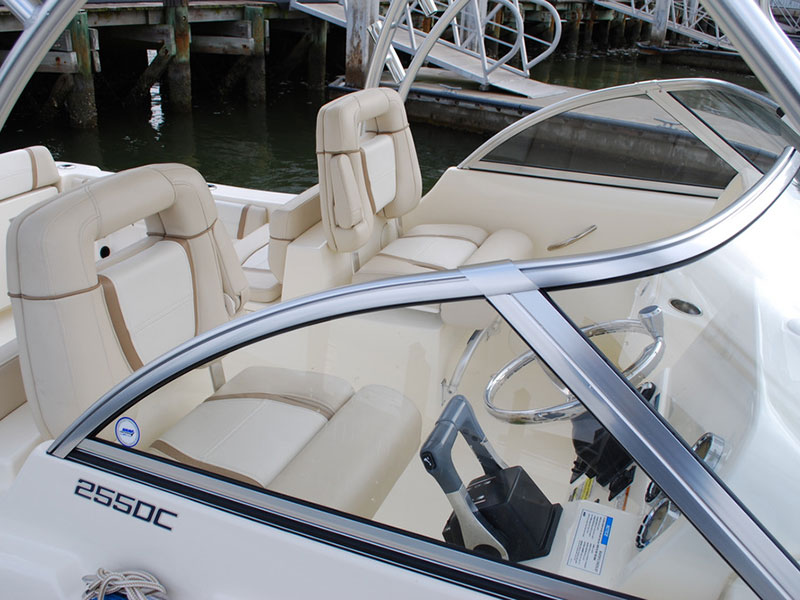

- Helm and passenger dual custom seats with flip-up bolsters and recessed stainless steel cup holders
- Ergonomic dash layout for a 12-inch screen
- Fusion® MS-UD750 marine entertainment system with 4 JL Audio speakers, remote and Bluetooth
- Starboard seatbox houses 30-gallon insulated livewell with a 1100-gph magnetic drive pump and overboard drain
- Port seatbox houses 200-quart insulated fish box / cooler
Stern
- Extended swim platform with integrated handrails and ladder
- Walk-though transom with heavy-duty door
- Battery management system with 2 Group 27 batteries
- Pull-out transom fresh water shower
- Dual aft fold-down seats with backrest cushions
- 6 pull-up stainless steel cleats
- 4 gunwale-mounted stainless steel rod holders
- Raw water washdown
WORLD CAT 255 DC OPTIONS
4-stroke Engine Packages with engines, rigging, controls and props
- Yamaha 150 HP 4-strokes (twin counter-rotating engines, rigging, controls & stainless props)
Accessories
- Heavy duty, reinforced, stainless steel lifting eye
- Pantograph-style heavy-duty waterproof windshield wiper with rinse
- Bow table with filler cushion
Canvas
- High-grade curtain package with Strataglass™
Electronics
- Integrated 2-bank battery charging system
Steering Systems
- Power-assist steering with 13″ stainless steel wheel
Hardtop
- Matching hardtop underside to hull side color
- Powdercoated hardtop frame Outrigger
- Taco 280 Grand Slam™ outriggers with 15′ telescopic poles
WORLD CAT 255DC SPECS
- LOA w/o pulpit 24’6″
- Beam 8’6″
- Hull Draft 12″
- Freeboard Aft 25″
- Transom Height 25″
- Fuel Capacity 186 gal (2 x 93 gal)
- Max HP Rating 350 HP (2 x 175 HP)
- Approx. Dry Weight* 6,600 lbs w/ twin 150’s
- Trailering Height** 10′
- Bridge Clearance 8’6″
- Cockpit Length 48″
- Freshwater Capacity 10 gal
- Wastewater Capacity 10 gal
- Typical Cruise*** 25 mph / 2.2 mpg
- Typical WOT*** 47 mph / 1.4 mpg
- Seating 10 people
* Includes max power and typical options
** Measured keel to top of fiberglass hardtop with no outriggers nor electronics installed (not including trailer itself)
*** Tested with max power, two people, 1/2 fuel, no gear
